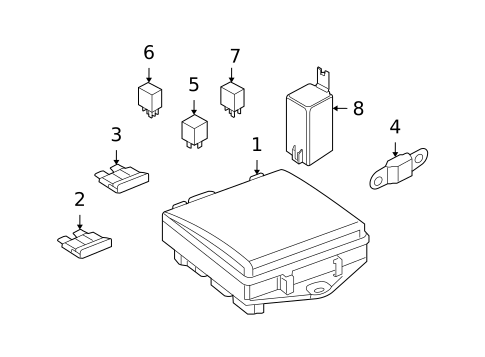

Fuse & Relay for 2009 Jaguar Super V8
No.
Part # / Description / Price
Price
1
Fuse & Relay Box
Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Trunk mounted.
MSRP $463.19
$382.59
MSRP $463.19
$382.59
2
Mini Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: 2014-17, 30 amp. Luggage compartment, 2021-23, 30 amp. Trunk mounted, 30 amp. Cabin, 30 amp.
MSRP $6.29
$5.72
MSRP $6.29
$5.72
3
Maxi Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Luggage compartment, 2021-23, 80 amp. Cabin, 80 amp.
MSRP $6.97
$6.34
MSRP $6.97
$6.34
4
Main Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Trunk mounted, mega, 175 amp. Engine compartment, mega, 175 amp.
MSRP $12.05
$10.96
MSRP $12.05
$10.96
4
Main Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Trunk mounted, mega, 100 amp. Engine compartment, mega, 100 amp.
MSRP $12.59
$11.45
MSRP $12.59
$11.45
5
Relay Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Sedan. Engine compartment, accessory. XJ, XK. Front compartment, 40 amp-4 pin. Luggage compartment, 2021-23, 40 amp 4 pin. Rear compartment, 40 amp-4 pin.
MSRP $21.49
$19.55
MSRP $21.49
$19.55

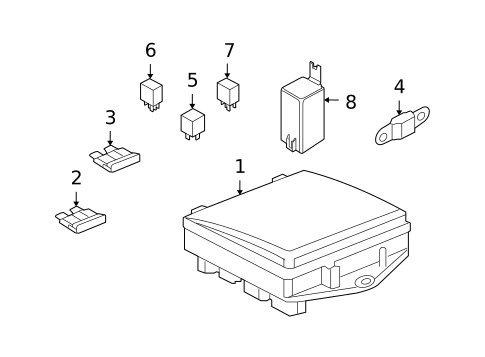

6
No.
Part # / Description / Price
Price
2
Mini Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: 2014-17, 10 amp. Luggage compartment, 2021-23, 10 amp. Fuse box- underhood, 10 amp. Cabin, 10 amp.
MSRP $1.37
$1.25
MSRP $1.37
$1.25
2
Mini Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: 2014-17, 20 amp. Trunk mounted, 20 amp. Cabin, 2021-23, 20 amp. Fuse box- underhood, 20 amp. Luggage compartment, 20 amp.
MSRP $0.71
$0.65
MSRP $0.71
$0.65
3
Maxi Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Trunk mounted, 40 amp.
MSRP $2.14
$1.95
MSRP $2.14
$1.95
3
Maxi Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Engine compartment, 100 amp. Cabin, 2018-20, 100 amp. Cabin, 2021-23, 100 amp. Luggage compartment, 1000 amp.
MSRP $6.97
$6.34
MSRP $6.97
$6.34
4
Fuse Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Engine compartment, mega, 450 amp.
MSRP $12.75
$11.60
MSRP $12.75
$11.60
4
MSRP $10.07
$9.17

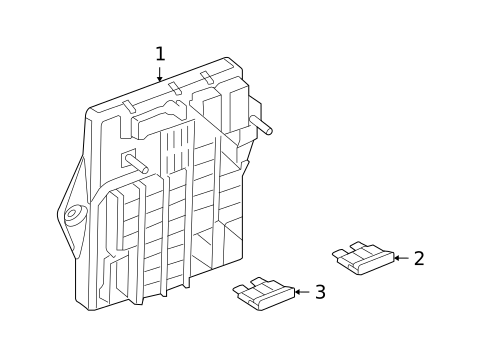

No.
Part # / Description / Price
Price
1
Fuse & Relay Box Jaguar
Jaguar Notes: PARTS: Order by description.
Description: Footwell.
MSRP $181.29
$152.28
MSRP $181.29
$152.28
