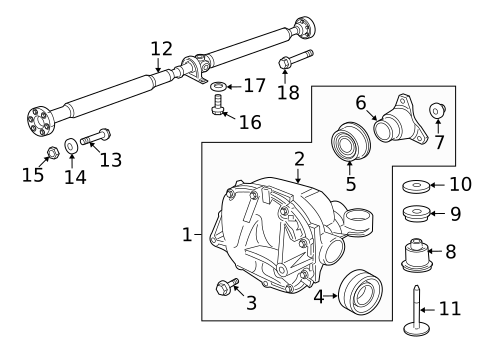

Axle & Differential for 2009 Jaguar XF
No.
Part # / Description / Price
Price
1
Differential Assembly 1
Jaguar
Jaguar Description: 3.58:1, new. S-Type. All. 3.0l. Manual trans. XF. With supercharger. To vin r41865. To vin r48165, with supercharged.
2
Differential Cover Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: To vin r48165. From Chassis/VIN M45255.
3
Differential Cover Bolt Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: To vin r48165.
4
Differential Assembly Seal Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: S-Type. 2007-09. XK, XKR. To vin r48165, output shaft. XF. To vin r41865. With supercharger.
MSRP $33.65
$26.25
MSRP $33.65
$26.25
5
Pinion Seal Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: All models. To vin h31470. S-Type. 2007-09. XK, XKR. To vin r48165, pinion.
MSRP $49.30
$38.45
MSRP $49.30
$38.45
6
Flange Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: XJ, XK. Sedan. To vin h31470. S-Type. XK, XKR. 2007-09. To vin r48165.
MSRP $590.49
$557.42
MSRP $590.49
$557.42
7
Differential Assembly Nut Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: 2007-09. To vin r48165.
MSRP $14.27
$12.99
MSRP $14.27
$12.99
9
MSRP $44.93
$37.96
10
MSRP $13.96
$11.79
11
MSRP $14.85
$13.51
12
Drive Shaft Assembly Jaguar
Jaguar Description: To vin n77593. 4.2L. To vin r48165. XF. To vin r41865.
MSRP $2,516.09
$2,170.13
MSRP $2,516.09
$2,170.13
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
1
Differential Assembly Jaguar
Jaguar Description: XF. From vin r41866, 4.2l with supercharger.
MSRP $3,237.07
$2,978.11
MSRP $3,237.07
$2,978.11
1
Differential Assembly Jaguar
Jaguar Positions: Rear
Description: XF. Without supercharger. FROM VIN R41866. 4.2L without superchargr.
MSRP $3,069.07
$2,823.55
MSRP $3,069.07
$2,823.55
2
Plug Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: With awd. From vin r41866. 5.0L supercharged. 3.0L supercharged. 2010-15, 5.0 without supercharger. 2.0L. With 3.0L.
MSRP $4.38
$4.26
MSRP $4.38
$4.26
3
Drain Plug Jaguar
Jaguar Notes: PARTS: Part included with differential assembly.
Description: From vin r41866. 5.0L supercharged. 3.0L supercharged. 2010-15, 5.0 without supercharger. 2.0L. With 3.0L.
MSRP $5.33
$5.20
MSRP $5.33
$5.20
4
MSRP $26.33
$23.96
5
Differential Assembly Upper Insulator Jaguar
Jaguar Positions: Right
Notes: PARTS: Part included with differential assembly.
Description: 5.0L supercharged. 3.0L supercharged. From vin r41866. 2010-15, 5.0 without supercharger. 2.0L. With 3.0L.
MSRP $29.84
$27.16
MSRP $29.84
$27.16
5
Differential Assembly Upper Insulator Jaguar
Jaguar Positions: Left
Notes: PARTS: Part included with differential assembly.
Description: 5.0L supercharged. 3.0L supercharged. From vin r41866. 2010-15, 5.0 without supercharger. 2.0L. With 3.0L.
MSRP $29.84
$27.16
MSRP $29.84
$27.16
6
MSRP $956.93
$825.36
7
MSRP $5.29
$4.81
8
MSRP $1.73
$1.57
9
MSRP $8.64
$7.87
10
Drive Shaft Mount Bolt Jaguar
Jaguar Description: M10 x 25mm. From vin r41866, without 3.0l.
MSRP $0.75
$0.68
MSRP $0.75
$0.68
12
Drive Shaft Bolt Jaguar
Jaguar Description: From vin r41866. 5.0L supercharged. 3.0L supercharged. 2.0L.
MSRP $3.32
$3.02
MSRP $3.32
$3.02
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
