Home 2015 Jaguar XFR Base 5.0L V8 - Gas Electrical Components

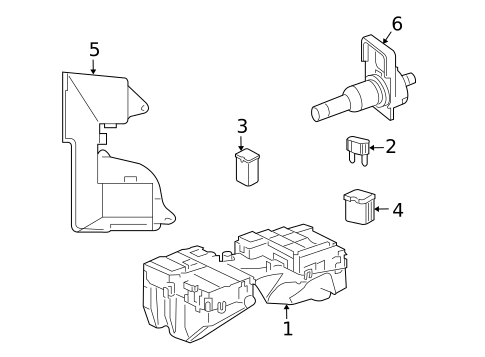

Electrical Components for 2015 Jaguar XFR

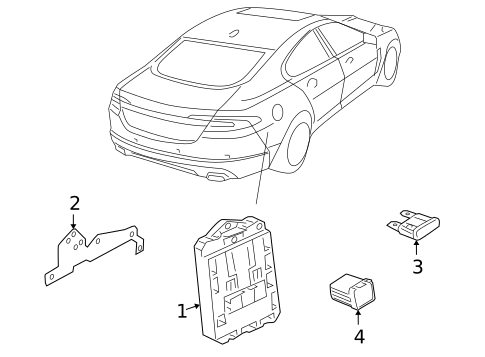

Electrical Components for 2015 Jaguar XFR #2

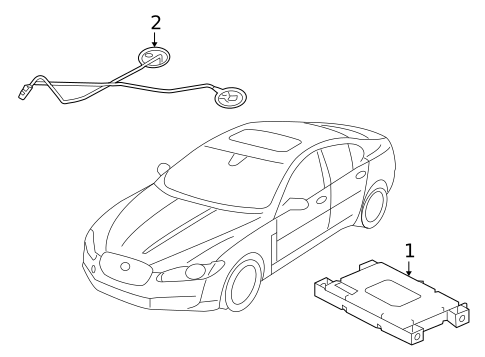

Electrical Components for 2015 Jaguar XFR #3

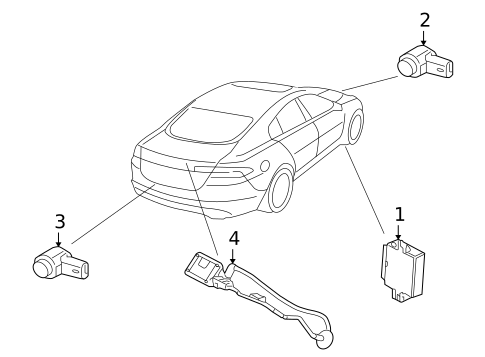

Electrical Components for 2015 Jaguar XFR #4

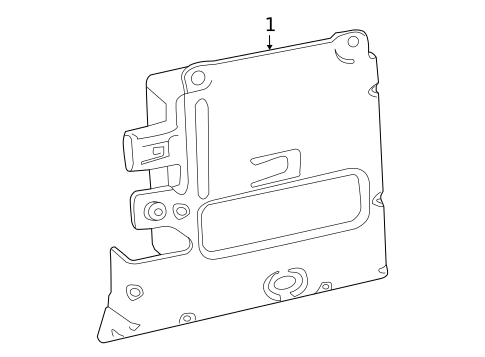

Electrical Components for 2015 Jaguar XFR #5

No.

Part # / Description / Price

Price

Fuse Box

C2Z32178

Jaguar

Description: Fuse box- underhood, smart junction, fm vin r79435.

MSRP $4,544.40

$4,180.85

MSRP $4,544.40

$4,180.85

Mini Fuse

C2P3082

Jaguar

Description: 2014-17, 20 amp. Trunk mounted, 20 amp. Cabin, 2021-23, 20 amp. Fuse box- underhood, 20 amp. Luggage compartment, 20 amp.

MSRP $0.71

$0.65

MSRP $0.71

$0.65

Mini Fuse

C2S25670

Jaguar

Description: Cabin, 2018-20, 5 amp. 2014-17, 5 amp. Engine compartment, 5 amp. Cabin, 2021-23, 5 amp. Luggage compartment, 5 amp.

MSRP $1.43

$1.30

MSRP $1.43

$1.30

Mini Fuse

C2P3083

Jaguar

Description: 2014-17, 30 amp. Luggage compartment, 2021-23, 30 amp. Trunk mounted, 30 amp. Cabin, 30 amp.

MSRP $6.29

$5.72

MSRP $6.29

$5.72

Mini Fuse

C2P3080

Jaguar

Description: 2014-17, 10 amp. Luggage compartment, 2021-23, 10 amp. Fuse box- underhood, 10 amp. Cabin, 10 amp.

MSRP $1.37

$1.25

MSRP $1.37

$1.25

Maxi Fuse

C2Z2972

Jaguar

Description: Trunk mounted, fuse-link, 30 amp. Fuse box- trunk, 30 amp. Engine compartment, maxi, 30 amp.

MSRP $4.51

$4.11

MSRP $4.51

$4.11

Maxi Fuse

C2Z2974

Jaguar

Description: Engine compartment, 50 amp. Trunk mounted, fuse-link, 50 amp. Fuse box- underhood, 50 amp. Fuse box- trunk, 50 amp.

MSRP $8.39

$7.63

MSRP $8.39

$7.63

Fuse

XR86387

Jaguar

Description: Engine compartment, 80 amp. Fuse box- underhood, 80 amp. Trunk mounted, 80 amp.

MSRP $12.05

$10.96

MSRP $12.05

$10.96

Fuse

T2H36048

Jaguar

Description: Engine compartment, 50 amp. Fuse box- underhood, 50 amp.

MSRP $7.73

$7.03

MSRP $7.73

$7.03

Fuse

C2S9945

Jaguar

Description: Trunk mounted, 30 amp. Fuse box- underhood, 30 amp. Engine compartment, 30 amp.

MSRP $3.61

$3.29

MSRP $3.61

$3.29

Fuse

C2S29898

Jaguar

Description: Fuse box- underhood, 20 amp.

View Details

Fuse

C2S19090

Jaguar

Description: Engine compartment, 60 amp. Fuse box- underhood, 60 amp. Trunk mounted, 60 amp.

MSRP $4.51

$4.11

MSRP $4.51

$4.11

Fuse Box Cover

C2Z2103

Jaguar

Description: Fuse box- underhood.

MSRP $32.25

$29.34

MSRP $32.25

$29.34

Junction Block

XR818399

Jaguar

Description: XF. Without stop start. Fuse box- underhood.

MSRP $285.77

$240.05

MSRP $285.77

$240.05

No.

Part # / Description / Price

Price

Control Module

C2P24328

Jaguar

Description: Headlamp levelling system, fm vin r71187. Headlamp leveling module. XF. From vin r71186. Headlamp leveling, with adaptive light. XK, XKR. Without active headlamps.

MSRP $337.40

$283.42

MSRP $337.40

$283.42

Position Sensor

XR826513

Jaguar

Description: XF. Front sensor. Headlamp levelling system. Headlamp leveling, front. XK, XKR.

MSRP $225.12

$189.10

MSRP $225.12

$189.10

Front Sensor Clip

XR832360

Jaguar

Description: Headlamp levelling system. Headlamp leveling, front.

MSRP $29.82

$27.13

MSRP $29.82

$27.13

Sensor

C2P15219

Jaguar

Description: XJ series. Rear sensor. F-Type. With adaptive dynamics. XF. Headlamp levelling system, with black connector.

MSRP $234.55

$197.02

MSRP $234.55

$197.02

Height Sensor

C2P15221

Jaguar

Description: XF. Headlamp levelling system, with blue connector.

MSRP $254.16

$213.49

MSRP $254.16

$213.49

Height Sensor Clip

C2D2792

Jaguar

Description: Headlamp levelling system. Headlamp leveling, rear.

MSRP $5.75

$5.23

MSRP $5.75

$5.23

Link Rod

XR826532

Jaguar

Positions: Left

Description: Headlamp levelling system. Headlamp leveling.

MSRP $29.14

$22.72

MSRP $29.14

$22.72

No.

Part # / Description / Price

Price

Fuse Box

C2Z32179

Jaguar

Description: Fuse box- trunk, smart junction, fm vin r59504.

MSRP $4,037.79

$3,714.76

MSRP $4,037.79

$3,714.76

Fuse Box Mount Bracket

C2Z3436

Jaguar

Description: Fuse box- trunk.

MSRP $15.56

$12.14

MSRP $15.56

$12.14

Mini Fuse

C2S25689

Jaguar

Description: Cabin, 2018-20, 25 amp. 2014-17, 25 amp. Engine compartment, 25 amp. Cabin, 2021-23, 25 amp. Fuse box- trunk, 25 amp. Luggage compartment, 25 amp.

MSRP $6.52

$5.93

MSRP $6.52

$5.93
